All size automatic high precision wood panel table saw cutting machine with CE certificate

FOB Reference Price:Get Latest Price
$1,700.00 - $2,200.00 / Units | 1 Unit/Units (Min. Order)
Type:
Table Panel Saw
Model Number:
OBT6132S
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Retail, Construction works
Condition:
New
Use:
Woodworking
Style:
Horizontal
Place of Origin:
Shandong, China
Brand Name:
OBT
Usage:
Woodworking
Voltage:
380V
Power(W):
5.5kw
Dimension(L*W*H):
3250x3450x900mm
Weight:
860kg
Certification:
CE/ISO9001
Warranty:
12 Months
After-sales Service Provided:
Online support
Application:
woodworking, Panels Wood Cutting Machine
Name:
Precision Panel Saw
Max sawing length:
3200mm
Dimensions Sliding Table:
3200*380mm
Max sawing width:
1250mm
Saw blade diameter:
300mm(250mm-350mm)
Spindle speed:
4000/6000rpm
Spindle diameter:
30mm
Tiling saw blade:
45° eletric tilt
Main motor power:
5.5kw
Supply Ability
Supply Ability:
300 Unit/Units per Month panel saw
Packaging & Delivery
Packaging Details
Standard packaging
Port
Qingdao
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

Main advantage

45°angle saw blade
Saw blade tilt available,
Not only 90°sawing,but also 0° to 45°,that'll be better for cutting work


Machine Frame
Laster cutting frame
Plastic spray surface treatment


Internal structure and table
Qualified material,painting and anti-corrosion
Extendable measuring stick
Aluminum track,stability and non displacement
Guarantee the precision of cutting process

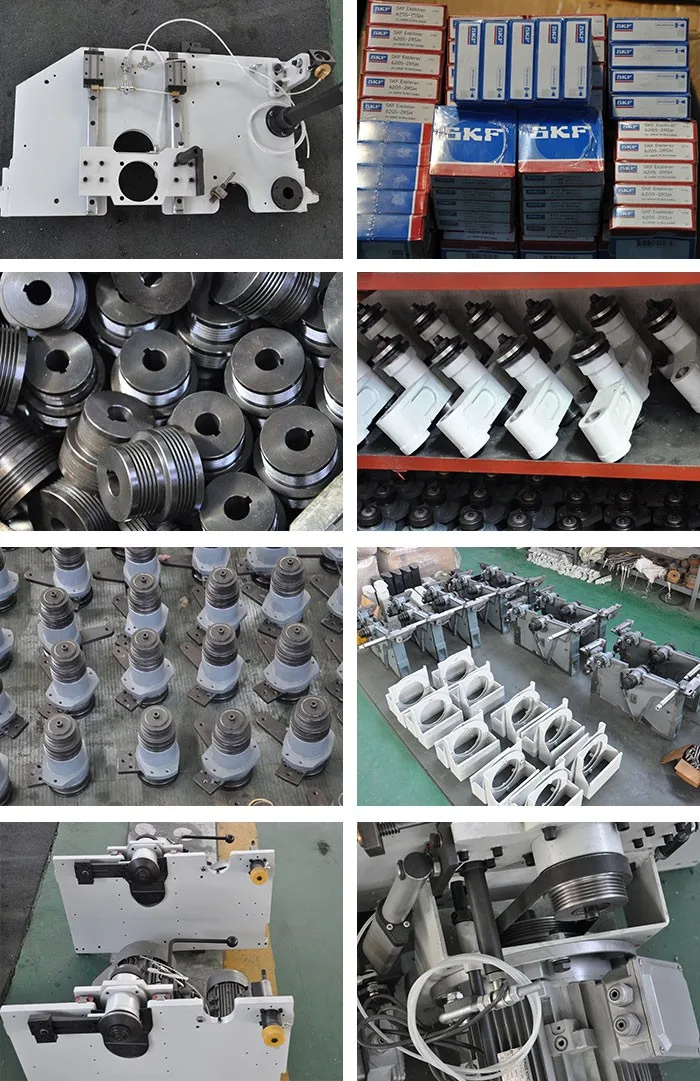

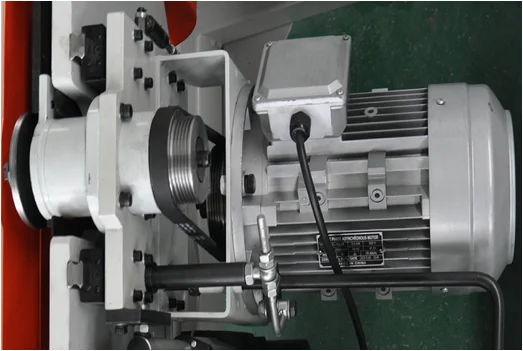

Motor and parts
High-strength parts,more longer working life
Pure copper wire motor 5.5+1.1KW
SKF bearing


Applicable Products: MDF, particleboard, wood-based panels, ABS panels,PVC panels, plexiglass, solid wood and other wood structure and hardness similar to the plate.

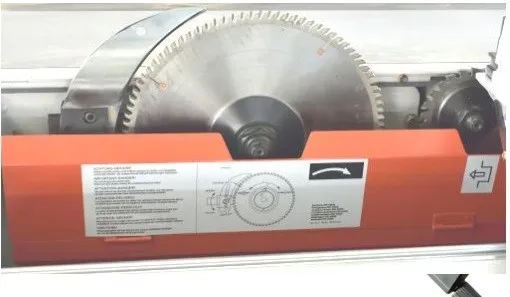

Dual-saw structure.
Smaller saw scrabing,

big one used for cutting.That could prevent fin.



Motor adopted international standard size,pure copper wire,good cooling,suitable for heavy working.

Model
OBT6132S
Function
Electric lift/electric tilt 45 degree
Dimensions Sliding Table
3200*380mm
Maximum Sawing Length
3200mm
Maximum Sawing Width
1250mm
Saw Blade Diameter
300mm(Φ250-Φ350)
Maximum Sawing Thickness
70mm
Spindle Speed
4000/6000rpm
Spindle Diameter
30mm
Tiling Saw Blade
45°
Main Motor Power
5.5kw
Scribing blade Specifications
Φ120mm
Scribing Blade Speed
8000r/min
Shaft Diameter
20mm
Scoring Power
1.1kw
Weight
860kg
Wooden Boxed Weight
900kg
Dimensions
3250*3450*900mm
Loading Quantity
20 units/40HQ
Spare parts
Our Company

Win the future with O.B.T:
OBT Manufacture CO., LTD is founded in 1997 in Qingdao China, as one of the leading companies in the woodworking machinery industry, O.B.T are able to offer comprehensive woodworking machinery solution for various clients, the main products include CNC saw, CNC router, edge banding machine, sliding panel saw, sanding machine, etc.

Abiding by the Corporate philosophy superior quality, reasonable price and perfect after-sales service, relying on exquisite research and manufacturing technology, we O.B.T provide the safest productions for our clients to help them develop the market.

O.B.T has got ISO9001 international system certificate and CE security certificate and supplied our best productions and service to South-east Asia, Europe, South America, Australia and Africa market successfully, and has won wide acclaim from customers.

In the future, O. B. T Group will constant adhering to the business philosophy of people-oriented, customer first, make persistent efforts to strengthen product development and take the advantage of group superiority, with the latest technology and perfect quality, we would develop the international market vigorously to provide a one-stop comprehensive solution to our client.


1.18 years manufacture experience,8 years Alibaba gold supplier, trade assurance guarantee
2.welcome to visit factory and $300 for flight support,quality pretest and guaranteed one year.
3.engineers available to service overseas,7*24 technical support
4.more than 100 overseas market shipment

5.focus high quality and keep updating
6.we can do OEM/ODM services for you

Main product
1.Panel saw
2.Edge banding machine
3.CNC router
4.Manual edge banding machine

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Life time technical support.


Certifications

Export record

Our customer

Packing & Delivery

SIZE

2350mm (L) * 1100mm (W) * 1100mm(D)/
2250mm (L) * 400mm (W) * 400mm(D)

Weight

900kg

Generally we will take care of your machine packages well ,Firstly our worker will make sure your machine clean before package.then add stretchy film for the whole machine and spare parts for sweet protection,at last we will make export standard strong plywood case package according to your needs
